Introduction

Greetings, everyone. Today, we will explore the sophisticated and vital piece of equipment that allows astronauts to survive and work in the harsh environment of space: the astronaut suit, or EMU. You didn't think that normal suits work out there, did you? Well, to be honest, it took scientists 21 years to develop this suit so that this marvel of engineering ensures the safety and functionality of astronauts during extravehicular activities (EVAs).

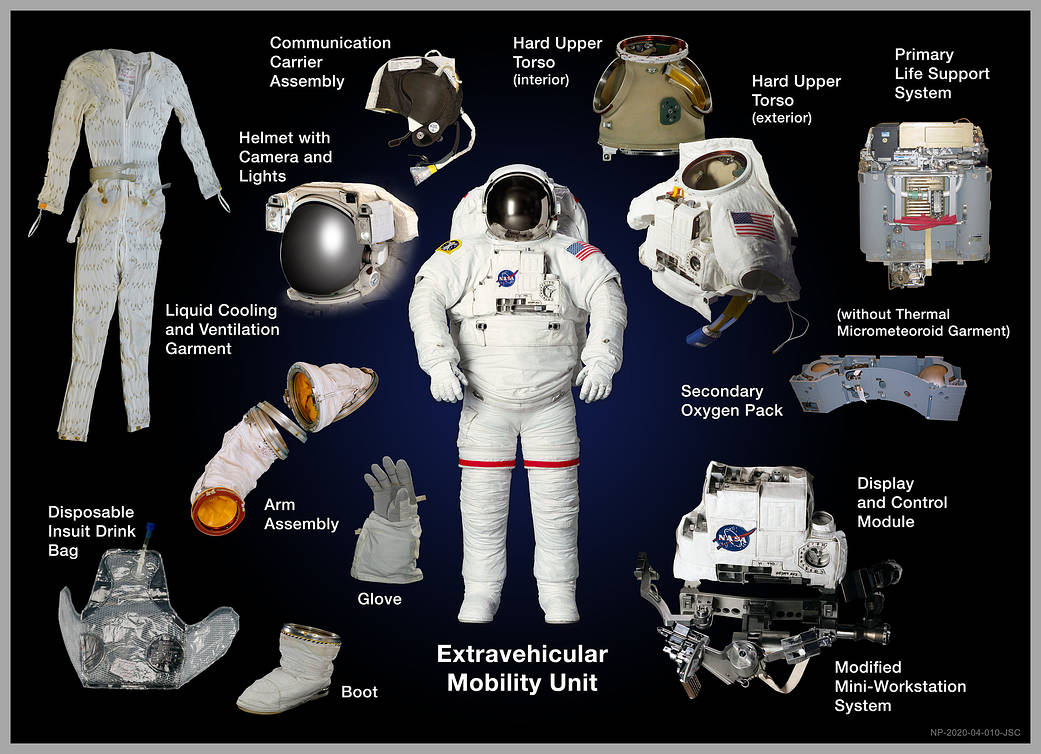

Image Source: Nasa


Overview of the EMU

The EMU is a self-contained life support system and personal spacecraft that protects astronauts from the extreme conditions of space. It consists of several layers and components, each serving a specific function.


Key Components and Functions


1. Pressure Garment

   Purpose:

Maintains stable pressure around the astronaut’s body, similar to Earth’s atmosphere, preventing bodily fluids from boiling in the vacuum of space.

Unlike Earth, the vacuum of space does not have any atmospheric pressure. without it, human body fluids will boil at normal body temperature not just that it will expand too.

That is precisely why pressure garments are used in EMU to facilitate circulation.

The proper pressure distribution around the body aids in maintaining effective blood circulation. This prevents blood pooling in the extremities and supports normal physiological functions.

   Structure:

Composed of several layers, including a bladder layer to hold pressure and a restraint layer to maintain the suit’s shape.


2. Thermal Control

   Temperature Management:

Space has extreme temperatures, from very hot temperatures in sunlight to freezing temperatures in frigid darkness. The suit's thermal control system, including insulation and a liquid cooling and ventilation garment (LCVG), regulates temperature.

Astronauts would fry if present in direct sunlight and would freeze if they were behind the shadow of a celestial body or Earth. We don't want that now, do we?

It's also for the comfort of astronauts. Extreme temperatures can affect the dexterity and functionality of the astronaut, making it difficult to perform tasks.

These suits also have various electronic systems and they are sensitive to temperature fluctuations and why wouldn't they?

   LCVG:

 This garment is worn next to the astronaut’s skin and is equipped with a network of tubes carrying water. It helps remove excess body heat generated during strenuous activities.

The EMU’s thermal control system typically includes:

  • Insulation Layers: These layers protect against external temperature extremes and help maintain internal suit temperature.
  • Liquid Cooling and Ventilation Garment (LCVG): This is worn under the spacesuit and circulates water through tubes to remove excess body heat.
  • Reflective Materials: These materials reflect sunlight and help manage heat absorption from solar radiation.


3. Life Support System

   Primary Life Support System (PLSS):

 Mounted on the back, this backpack unit contains essential systems for life support:

     Oxygen Supply:

Provides breathable oxygen and removes carbon dioxide.

     Cooling and Ventilation:

 Cools the astronaut and removes perspiration and exhaled CO₂.

     Water Supply:

 Supplies water for drinking and cooling.

I don't think this needs any explanation as to why we need these things around in the vastness of space where there is no oxygen, water, restaurants, etc etc.


4. Helmet

   Features:

 Includes a clear visor for visibility, a gold-coated visor to protect against solar radiation, and a ventilation system to prevent fogging.

   Communication:

Built-in communication systems allow astronauts to stay in contact with their team and mission control.

Here is an in-depth explanation

The helmet of an Extravehicular Mobility Unit (EMU) incorporates several critical features to ensure the safety, functionality, and comfort of astronauts during spacewalks:


1. Clear Visor for Visibility:

   Function: The clear visor provides an unobstructed view, enabling astronauts to see their surroundings and perform tasks accurately.

   Importance: Clear visibility is essential for navigation, manipulation of tools, and communication with other crew members or mission control.


2. Gold-Coated Visor for Solar Radiation Protection:

   Function: The gold-coated visor reflects and filters out harmful solar radiation, including ultraviolet (UV) and infrared (IR) rays.

   Importance: Without this protection, astronauts would be exposed to intense solar radiation, which could cause eye damage, skin burns, and overheating. The gold coating helps to maintain a safe and comfortable temperature inside the helmet and prevents long-term health risks associated with radiation exposure.


3. Ventilation System to Prevent Fogging:

   Function: The ventilation system circulates air within the helmet to prevent condensation from the astronaut's breath from fogging up the visor.

   Importance: Fogging can obscure vision, making it difficult or impossible for astronauts to see clearly. The ventilation system ensures that the visor remains clear, maintaining visibility and safety during extravehicular activities.


Each of these features plays a crucial role in the overall effectiveness of the helmet and the safety of the astronaut:


Safety: Protecting against solar radiation and ensuring clear visibility are fundamental to preventing immediate and long-term health risks.

Functionality: Clear vision and a fog-free visor are essential for performing precise tasks, operating equipment, and navigating the space environment.

Comfort: A properly ventilated helmet contributes to the astronaut's comfort, reducing stress and fatigue during potentially lengthy spacewalks.

5. Gloves

   Dexterity and Protection:

Designed to provide protection while allowing dexterity for handling tools and conducting repairs. They are often equipped with heaters to keep fingers warm in the cold environment of space.

Key Features:

  • Multi-Layered Construction: Gloves consist of multiple layers, including thermal insulation, radiation protection, and an outer shell that resists abrasions and impacts.
  • Adjustable Fit: Designed to fit snugly yet comfortably, allowing for maximum control and movement without compromising protection.
  • Heated Elements: Electric heaters or materials that retain body heat help maintain a stable temperature within the gloves. In the cold environment of space, maintaining warmth is critical to prevent frostbite and maintain manual dexterity.

6. Mobility and Dexterity Enhancements

   Joints and Bearings:

The suit has specially designed joints and bearings to enhance mobility, allowing astronauts to bend, twist, and move their arms and legs freely.

 Isn't this cool that you are getting a suit with so many features with mobility? Mobility is important and that's why it's there through researchers hard work and efforts.

   Boots:

 Sturdy and insulated to provide support and protection, with soles designed for gripping surfaces during EVAs.


7. Safety Features

   Tethers and Restraints:

 Ensure astronauts do not drift away into space. Tethers are always attached to the spacecraft or station.

   Emergency Systems:

Includes backup oxygen supply and communication systems in case of primary system failure.


 Special Features for Different Missions

Microgravity Adaptations:

For missions aboard the International Space Station (ISS), suits are designed for microgravity environments.

Lunar and Martian Suits:

Future missions to the Moon and Mars require suits with enhanced mobility and dust protection, such as the Artemis program’s next-generation suits.

Conclusion

The astronaut suit is a marvel of modern engineering, designed to protect and support astronauts in the unforgiving environment of space. It combines advanced materials, life support systems, and mobility features to ensure the safety and efficiency of astronauts during their missions. The continued evolution of the EMU will play a crucial role in humanity’s exploration of deeper space and other celestial bodies.


If you are not satisfied then here is the data book for you. https://www.lpi.usra.edu/lunar/artemis/NASA-EMU-Data-Book-JSC-E-DAA-TN55224.pdf
